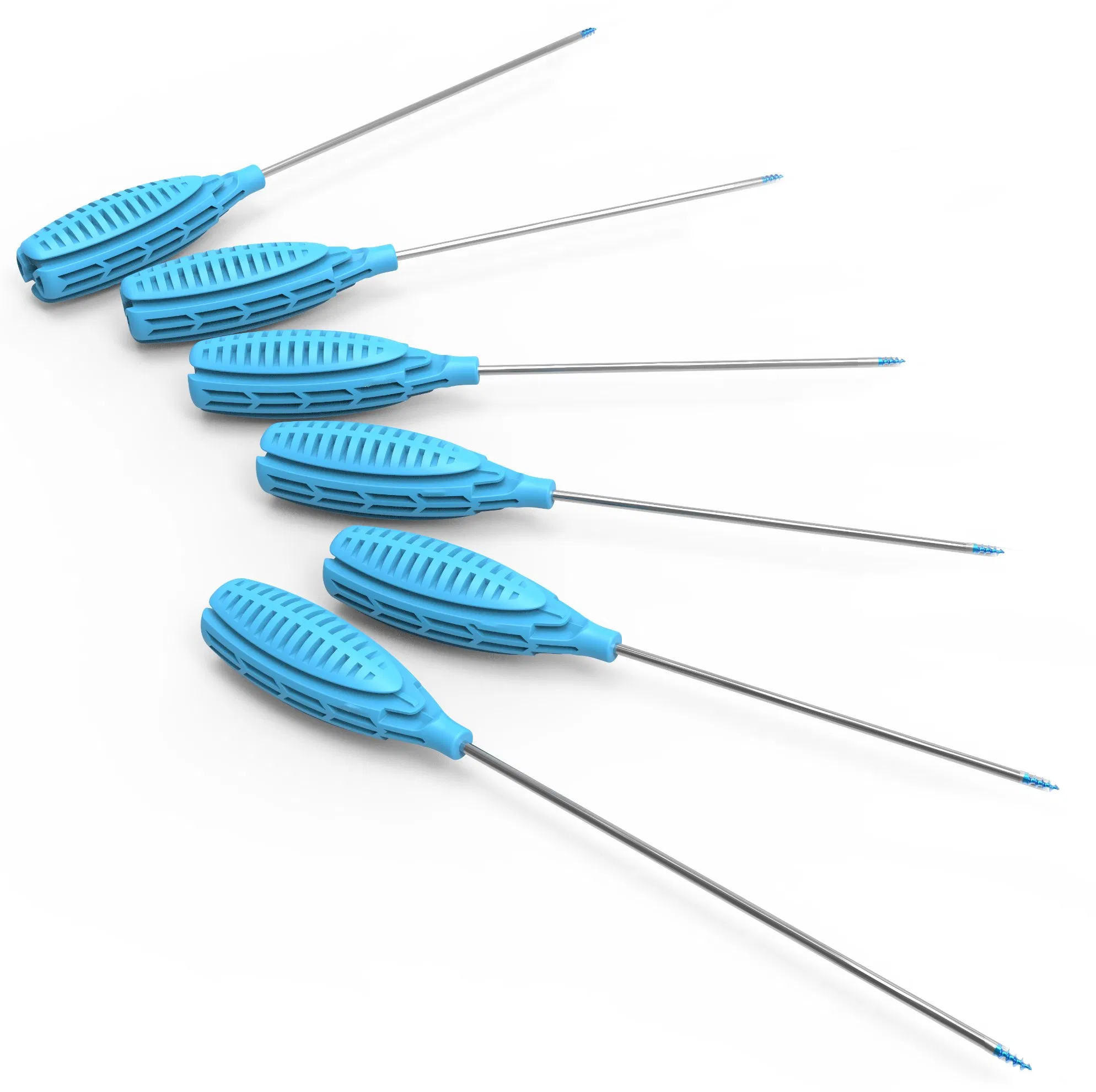

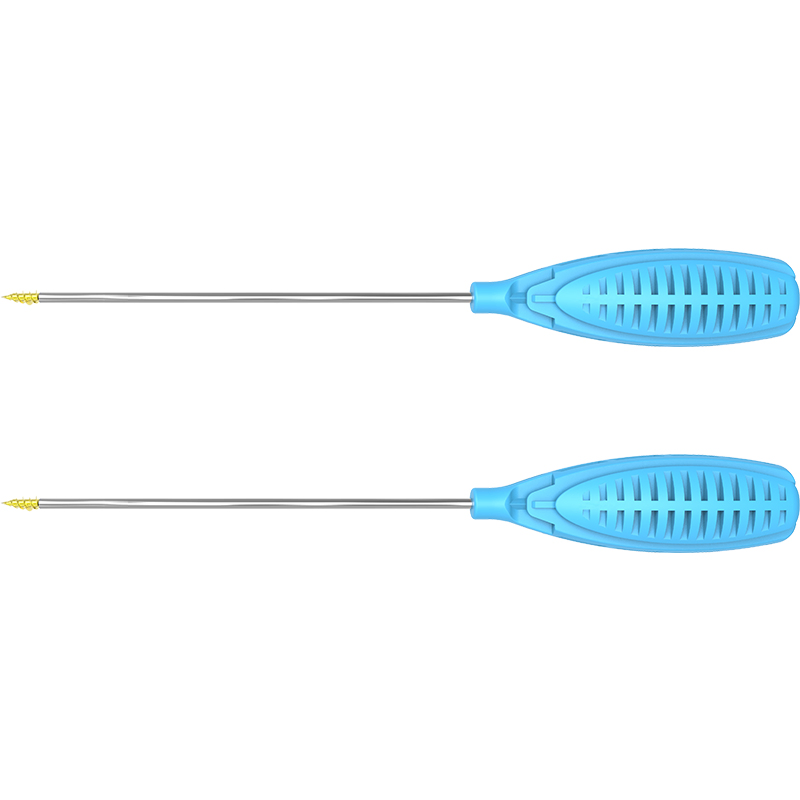

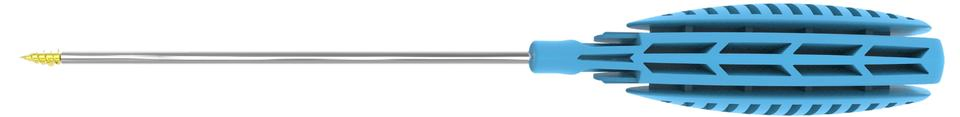

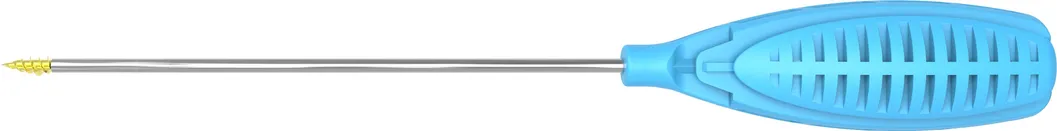

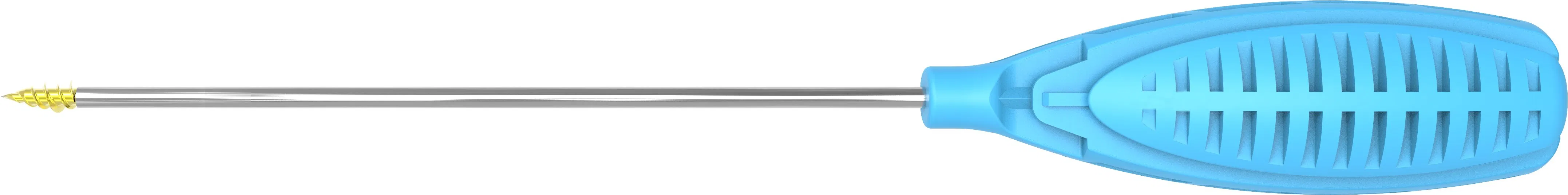

Hospital Equipment Sports Medicine Orthopedic Instrument Set Suture Anchor

📋

Basic Information

Model NO.

TY-SA

Material

Steel / Titanium Alloy

Feature

Reusable / Disposable Options

Certification

CE, ISO13485

Group

Adult

Classification

Class II

Warranty

1 Year

Package

Sterile Package

Trademark

iNature

Origin

China

HS Code

9021100000

Capacity

10,000 pieces/Year

🔍

Product Description

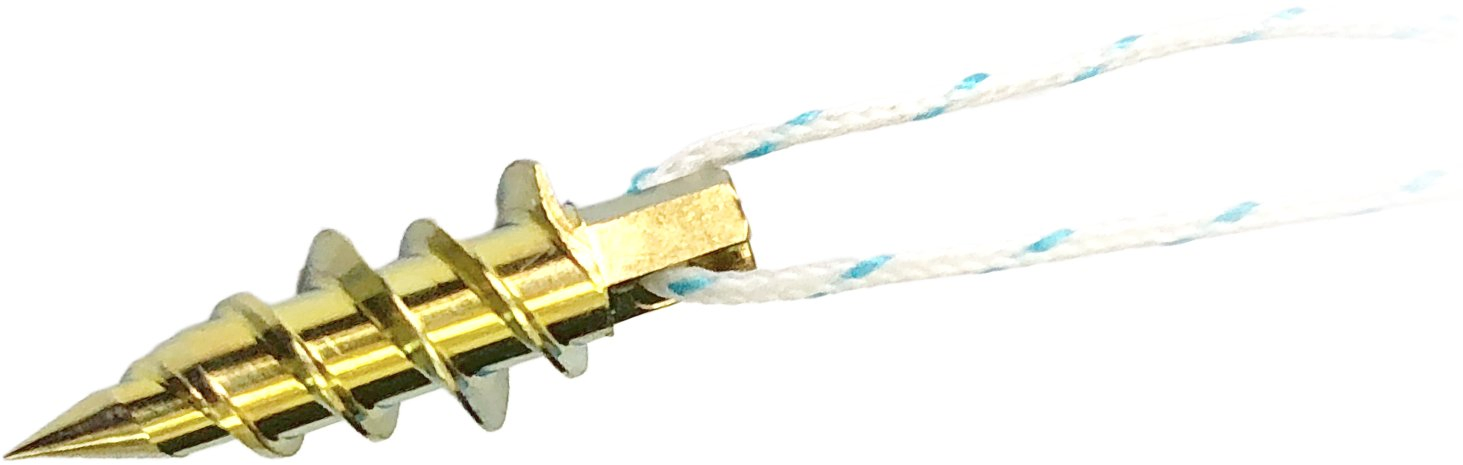

A suture anchor is a precision-engineered small implant designed to fix sutures into the bone, effectively reconnecting soft tissue and bone. This fully threaded anchor features suture holes through its center, providing exceptional flexibility for working sutures. It is designed to minimize bone removal during the guide hole creation process without compromising pullout strength.

Product Specifications

Model	Anchor Details (mm)			Suture
Model	External Diameter	Anchor Length	Total Length	Specification
T20-φ2.0x7.5	φ2.0	7.5	184.3	2 0# sutures
T12-φ2.8x11.5	φ2.8	11.5	251.4	1 2# suture
T22-φ3.5x12	φ3.5	12	255.2	2 2# sutures
T22-φ5.0x15.5	φ5.0	15.5	257.5	2 2# sutures
T22-φ6.5x16.3	φ6.5	16.3	260.7	2 2# sutures

⭐

Product Advantages

Hexagon Drive Supports multi-angle implantation and double implantation during operation, offering superior flexibility and ease of use.

Advanced Head Design Features an optimized suture hole edge to significantly reduce friction during surgery.

Titanium Alloy Material Constructed with premium titanium for excellent biocompatibility and long-term stability.

Sharp Anchor Head Innovative sharp design eliminates the need for pre-drilling, making implantation faster and easier.

Double Thread Design High and low double threads provide stronger torsional strength and pull-out resistance, reducing operation time.

💡

Medical Tips

Scope of Use

Suture Anchors are vital surgical implants used for attaching soft tissues (such as ruptured tendons and ligaments) to bone. They consist of the anchor body, a suture, and an 'eyelet' interface. They are available in various configurations, sizes, and materials to suit different clinical needs.

Composition Characteristics

Our sutures are made of ultra-high molecular weight polyethylene (UHMWPE) and polyester composite braid. This combination ensures superior mechanical properties, a better tactile feel, and more convenient handling for surgeons.

Frequently Asked Questions

What is the primary function of these suture anchors?

They are surgical implants specifically designed to reconnect soft tissues, like tendons and ligaments, directly to the bone after injury or rupture.

Do I need to pre-drill the bone before implantation?

No, the anchor features a sharp head design that allows for direct implantation without the need for pre-drilling in most surgical scenarios.

What materials are used for the anchor and the suture?

The anchor is made of high-grade Titanium alloy for biocompatibility. The suture is a composite braid of ultra-high molecular weight polyethylene and polyester.

What kind of warranty and guarantees do you offer?

We offer a 1-year warranty. We guarantee returns or exchanges for quality issues within the first month and provide free repairs for one year (excluding misuse).

How does the double thread design benefit the surgery?

The high and low double thread design significantly improves torsional strength and pull-out resistance, while enabling quicker screw-in to reduce total operation time.

What technical support is available after purchase?

We provide timeless online technical support. Our engineers can guide you through technical solutions remotely, ensuring you can manage minor adjustments confidently.
